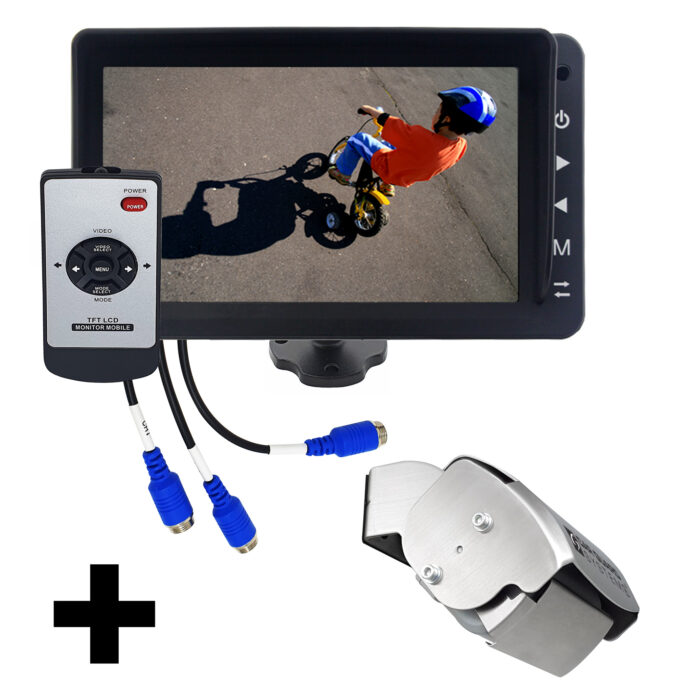

Professional 1080P Surface/Roof Mount Reversing Camera with Motorised Shutter, 20m video cable and 7″ LCD Monitor

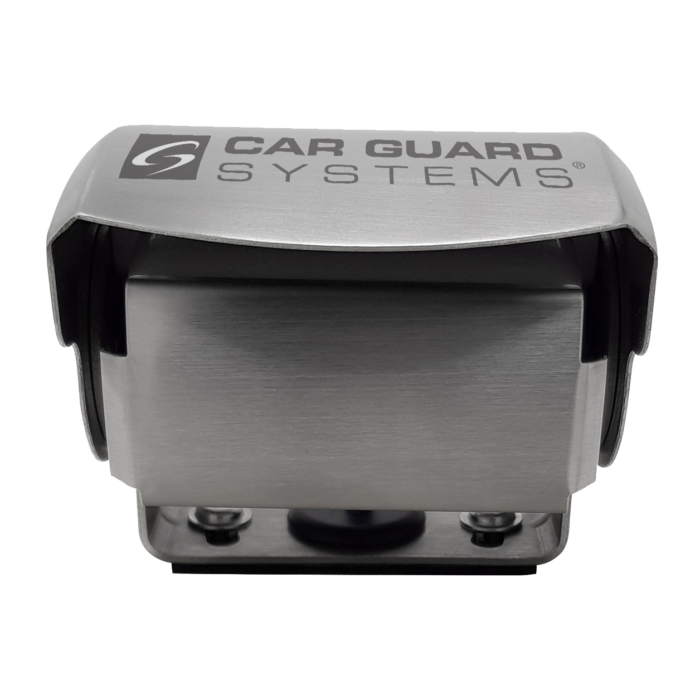

RAV-M Reversing Camera device information Outstanding resolution: 610,000 pixels with 700 TV lines. Power supply: DC 9-32V /- 10% Lens coverage: 70° (vertical) / 94° (horizontal) 118° (diagonal) Designed to meet IP69K, the highest protection standard for automotive components Protection against water from high-pressure cleaners Protection against permanent submersion Protection against foreign bodies: absolutely dust-tight Protection against contact and vibration The powder-coated silver die-cast aluminium housing is additionally protected by a corrosion-free sunshield, a motorised closing shutter and a 2 mm thick, torsion-resistant stainless steel mounting foot extremely resistant to branches, high-pressure cleaners, storms, dirt, winter weather and rain Waterproof screw connections Protective shutdown in case of blockage by foreign objects Image sensor size 700 TVL 1/3 inch Sharp CCD model RJ2341BA0PB Image sensor size 1080p 1/2.9 inch Sony CMOS Fast real-time image transmission 6 infrared LEDs of highest quality guarantee a very good image even in darkness Night vision up to 12 m Light sensitivity: 0 lux (with IR at night), 0.1 lux (during the day) Vibration resistant up to 5G (700TVL) / up to 10G (1080p) Shockproof up to 80G Built-in microphone Heating against condensation: active below 10° Celsius The camera image is mirrorable Automatic backlight compensation Automatic brightness and white balance TV system: PAL Anti-fog lotus coating Focal length: f= 2.8 mm (700TVL) / f=3.6 mm (1080p) Sensor coverage: 4.9 mm (H) x 3.7 mm (V) Power consumption: < 2.5 W No voltage connection necessary at the rear of the vehicle Video signal output: 1 Vp-p, 75 Ohm Power consumption in operation: 88 mA during the day, 128 mA at night, maximum: 535 mA Operating temperature range: -20° C to 70° C, max. relative humidity 95% Standing temperature range: -40° C to 80° C, max. relative humidity 95% Scanning system: 2:1 interlace 700TVL / progressive 1080p Synchronisation: internal Horizontal synchronisation frequency: 15.63 kHz / 15.73 kHz Vertical sync frequency: 50 Hz / 60 Hz Gamma: 0.45 Gain control: automatic Signal-to-noise ratio: 48 dB 700TVL / 52 dB 1080p Electronic shutter speed: 1/50 (PAL) ~ 1/100,000 s Length: 77.9mm, Width: 71.3mm, Height: 70mm Weight: 360g
